FEVF-89T-1 Feature

Economical , no outer covering, can control induction motor and torque motor, can adjust speed and torque seperately.

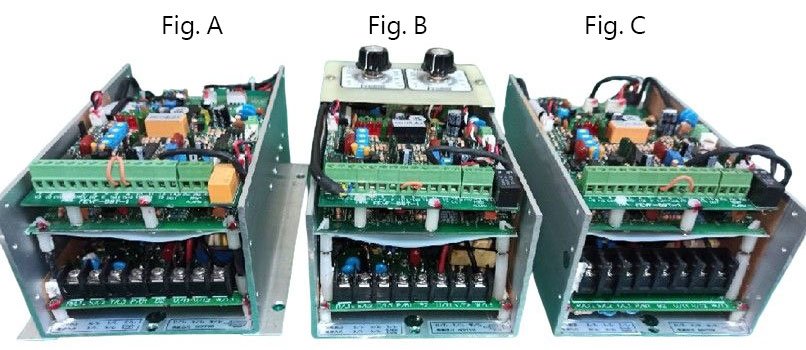

Note: Fig B operation panel optional

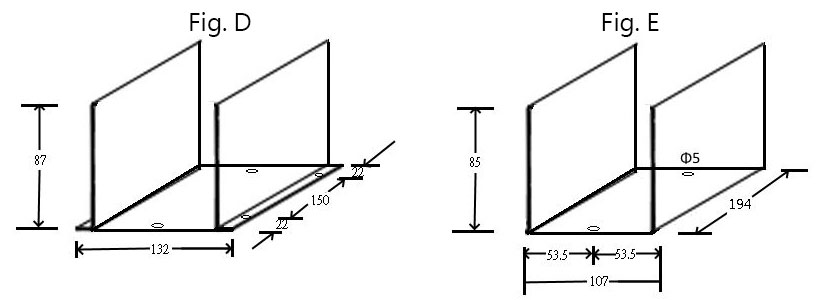

FEVF-89T-1 Size

Specification:1ø-Single-phase, 3ø-Three-phase

Model	122P1	122P3	122P5	322P3	322P5	32201	333P3	333P5	33301	344P3	344P5	34401
Motor Power (KW)	0.1	0.2	0.4	0.2	0.4	0.75	0.2	0.4	0.75	0.2	0.4	0.75
Rated Output current (A)	0.8	1.2	1.9	1.2	1.9	3.5	0.8	1.22	2	0.7	1.2	1.8
Input Voltage (V)	1ø 220	1ø 220	1ø 220	3ø 220	3ø 220	3ø 220	3ø 380 /400	3ø 380 /400	3ø 380 /400	3ø 415 /440	3ø 415 /440	3ø 415 /440
Output Voltage (V)	3ø 0~220	3ø 0~220	3ø 0~220	3ø 0~220	3ø 0~220	3ø 0~220	3ø 0~380 0~400	3ø 0~380 0~400	3ø 0~380 0~400	3ø 0~415 0~440	3ø 0~415 0~440	3ø 0~415 0~440
Control Theory	Approximate Sine Wave PWM control method, V/F control
